Creation
1978
Anadolu Demir Çelik is a iron and steel products. Anadolu Demir-Çelik was founded in Konya in 1978. The company, which was engaged in iron trade in the first years, became a limited company in 1996. In addition to supplying products such as lama, erasure, IPE, NPU, HEA pipes, profiles, sheets, and hardware materials, which are manufactured in the Iron sector in an area of 7500 square meters in Büsan organization since 2010, they are engaged in special manufacturing. They also offer activities such as laser cutting, plasma cutting, press brake bending, scissors cutting, saw cutting to their customers.
Due to the continually increasing business volume in the iron and steel industry, they make new investments and always provide the best service to their customers. They use all their resources efficiently in continuous progress and development to provide quality products and to meet the expectations of customers in the best way.
About Products:
PROFILES | |

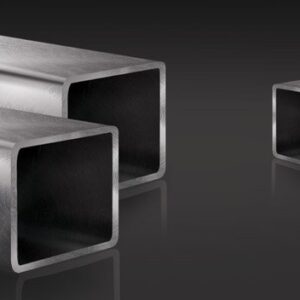

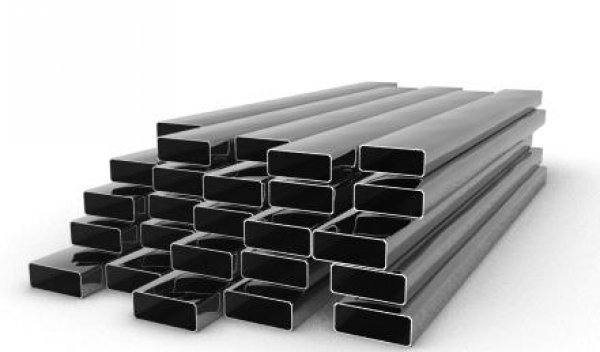

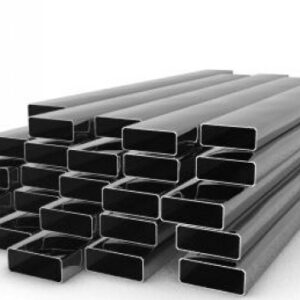

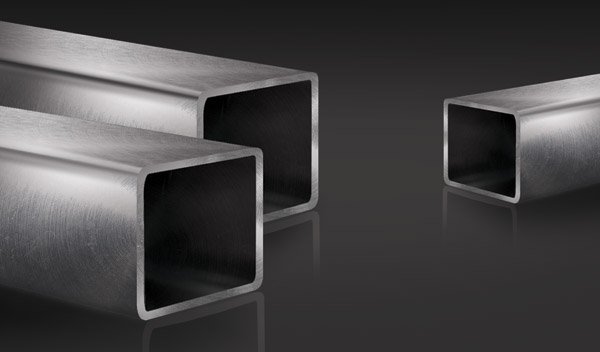

SQUARE HOLLOW SECTION | RECTANGULAR HOLLOW SECTION |
In building, piers, mold systems, steel constructions, the agricultural sector (greenhouse) for irrigation purposes, and roof systems. PAINTED PIPES Pipes are painted in brick red with water-based primer. Sizes are Ø 32 - 89 mm, wall thickness 2,00 - 4,00 USAGE AREAS It is used for construction purposes. | Generally available in 7.500 to 7.650 Metre lengths in Grade 43; however other sizes and grades are available. For your information, Kg/m refers to the Kilograms per Metre of the section, as an example a 4.200 Metre length of 50 x 30 x 3mm (RHS) Rectangular Steel Hollow Section (3.45 Kg/m) would weigh (4.2 x 3.45) 14.49 Kg’s Total. Outside Sections: 10X10 mm - 175X175 mm / 20X10 mm - 250X100 mm Thickness : 0.70 mm - 8.0 mm Length: Standard length is 6 meters; special orders can be delivered in sizes from 4 to 12 meters. |

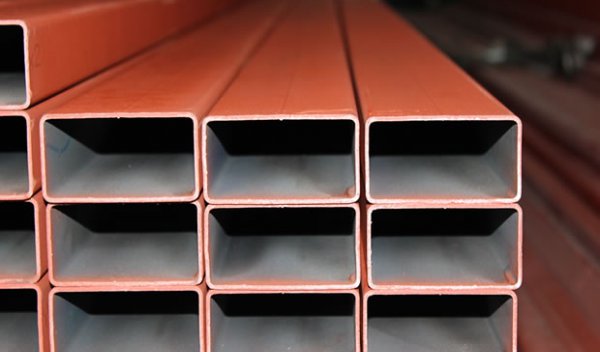

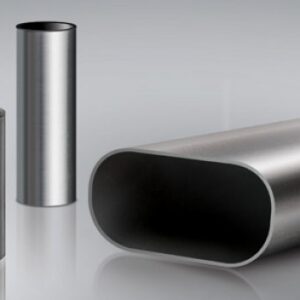

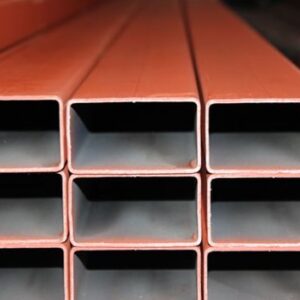

PRIMER COATED HOLLOW SECTION | TUBES WITH OVAL SECTION |
They are used in all constructions in which corrosion resistance and temporary product protection are desired. Production Standards They can be applied to products manufactured with all production standards. Note: Standard paint colors are Red (Ral Code 3009) and Black (Ral Code 9005). Other colors can be used upon request. | SIZES 15x22 UP TO 28x63 WALL THICKNESS 1 mm - 1.20 mm 1.50 mm - 2 mm |

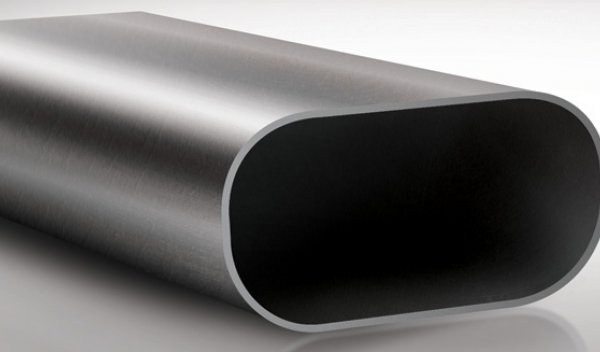

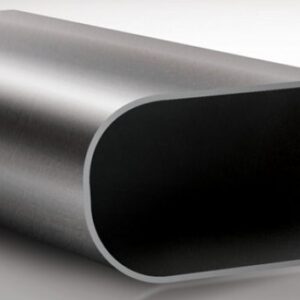

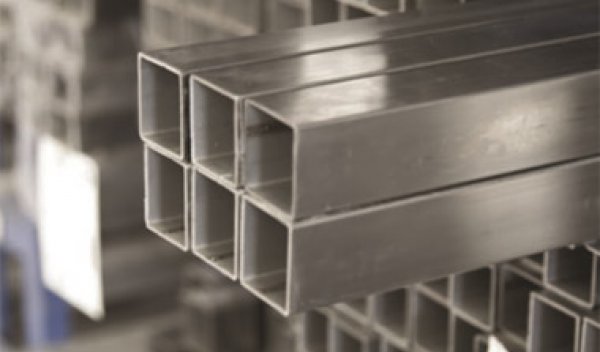

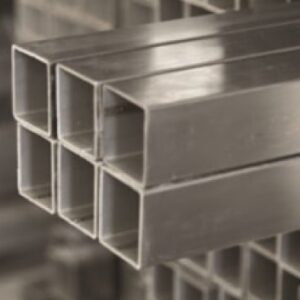

TUBES WİTH ELLIPTICAL SECTION | GALVANIZED HOLLOW SECTION |
SIZES 16x34 - 30x50 between WALL THICKNESS 1mm - 1.20mm 1.50mm - 2mm |
WALL THICKNESS 1,00 - 4,00 mm Applications: construction of sheds, shelters, parking, roof panels, and shelter panel slots for shops and warehouses, support systems frames for coating of building facades, roof casing frames, roof purlins, frames for tile roof house doors and windows, door frames, house railings fences and doors for fencing, gratings for area separation, grates and protection panels storage systems agricultural applications |
ERW PIPE GROUP | |
INDUSTRIAL AND SCAFFOLD PIPES | WATER WELL CASING PIPES |
OUTSIDE DIAMETER: 10mm - 273 mm WALL THICKNESS : 0.70 mm - 10.00 mm LENGHT (h): Standart 6 mt PRODUCTION STANDARD: TS 6476, EN 10305-3, BS6323 PART 5, DIN 2458, DIN 2394 | 33,4 mm – 323, 9 mm 3,2 mm – 9,5 mm 6,00 mm – 18,30 mm Production Standards & Material Qualities • ASTM A 589 Type I, II, III, IV Production Standard • Reliable High Steel Quality • From Grade A or Grade B Material Quality • Weldable • Threadable |
GAS AND LINE PIPES | ERW LINE PIPES |
OUTSIDE DIAMETER: 21.3 mm - 323,9 mm WALL THICKNESS : 2.80 mm - 9,5 mm LENGHT(h): Standart 6 mt PRODUCTION STANDART: API 5L ve TSE EN 10208 Normuna Göre Kaynak Ağızlı olarak Üretilmektedir. **1/2 " - 1.1/2 " arası Gr A,2" - 12" Arası Gr B ve X 42 Kalite olarak üretilmektedir. | Outside Diameter Wall Thickness Lenght 21,3 mm - 339,7 mm 2,8 mm- 12,7 mm 6,00 mm- 18,30 mm 0.84” - 13.375” 0.109’’- 0.500’’ 19,68 ft- 60,04 ft Production Standards & Material Qualities Line Pipe API 5L, PSL 1, PSL 2 A, B, X42, X46, X52, X56, X60, X65, X70 CSA Z 245.1 Gr 241-Gr 359 EN ISO 3183 L245-L485 (N, M, NE, ME) SI 530 Grade B |
SPIRALLY WELDED LINE PIPES | TUBES FOR PRESSURE PURPOSE / BOILER TUBES |
Sizes Outside Diameter Wall Thickness Lenght 508 mm – 3.048 mm 4,78 mm - 25,4 mm Single lengths up to 24,50 m * For pilling pipes single lengths up to 50,0 m Production Standards & Material Qualities API 5L PSL1 - PSL2 GRA - X80 (N, M) ISO 3183 L555 - X80 (N, M, ME) GOST 20295 K34 - K60 | Sizes Outside Diameter Wall Thickness Lenght 21,3 mm – 339,7mm 2,00 mm – 12,07 mm 5,00 mm- 18,30 mm |
ERW WATER PIPES | OCTG-CASING AND TUBING |
Outside Diameter Wall Thickness Lenght 21,3 mm- 339,7 mm 2,00 mm - 12,7 mm Single lenghts up to 24,50 m Production Standards & Material Qualities • Production Norms EN 10224, EN 10255, ISO 65, ASTM A 53, ASTM A 795, ASTM A 589 • Galvanizing Norms EN 10240, EN ISO 1461 (BS 729), ASTM A 53, NFA 49-700, UNI 5745 • Production Standard For Threading and Coupling (1/2’’-6’’) ISO 7/1, ANSI B.1.20.1, EN 10255 • Grooving (3/4’’-12’’) according to Victaulic Standard. • Our Medium Series Pipes can be used up to 25 bar operating pressure for water. • Material Qualities DIN 17100 St 37, St 44, St 52 EN 10025 S 195, S 235, S 275, S 355 Gr A, Gr B | Outside Diameter Wall Thickness Lenght 26,7 mm - 339,7 mm 2,87 mm- 13,06mm 6,00 mm- 18,30 mm 1.050” - 13.375” 0.113’’- 0.514’’ 19,68 ft- 60,04 ft Production Standards & Material Qualities • API 5CT certified for threaded and coupled casing and tubing (According to API 5B) • Full ERW grade range: H40, J55/K55, L80, N80, FBNAU, P110 and Q125 • Proprietary as rolled 80, 90 grade available • Enhanced high collapse versions of L80 and P110 grades available |
ROLL SHEET GROUP | |
Hot Rolled Coil | Cold Rolled Coil |
These are flat steel in a sheet having a width in the range of 1.000-3.800 mm and a thickness in the range of 5.00-200.00 mm and flat steel in the form of coils or sheets varying in thickness from 1.50 to 20.00 mm, obtained by hot rolling and in a hot rolling mill, a semi-product of rectangular cross-sectional form, called slab, formed by the solidification of liquid steel by continuous casting. | It is mainly hot-rolled coil and has been further processed. After cooling at room temperature and / or after hot rolling, the steel is processed in cold rolling facilities. With the cold rolling process, coils of different quality and size are obtained. |
SHEET METAL | Hot Dip Galvanized Coil |
These are flat steels of plate shape which have the thickness between 5,00-200,00 mm and width between 1.000-3.800 mm | Both surfaces are coated with zinc, and it is defined as a carbon steel coil. The coil is coated by a continuous galvanizing method and made both smoother and corrosion-resistant. Galvanized coils are widely used in various industries. |
CHECKERED SHEETS | GALVANIZED SHEETS- GALVANIZED PAINTED TRAPEZOIDAL SHEETS |
It is produced by passing the plate that is heat-treated in high heats through patterned molds. | Galvanized flat steels are produced employing covering both surfaces of the cold-milled metal with a zinc layer through the process of hot-dip. Widely used in road, railway, civil construction, water conservancy construction, all kinds of machinery, electrical appliances, window protection, and aquaculture, etc.. |
STRUCTURAL STEEL SECTIONS- MILL PRODUCTS | |
IPN PROFILES- BEAMS | IPE PROFILES- BEAMS |
HEA PROFILES-BEAMS | UPN PROFILES- CHANNELS |
UPE PROFILES | HEB PROFILES-BEAMS |
Please visit the company website for more information about their products. Further, if you want to know more about building materials and construction companies in Turkey, visit our website.
